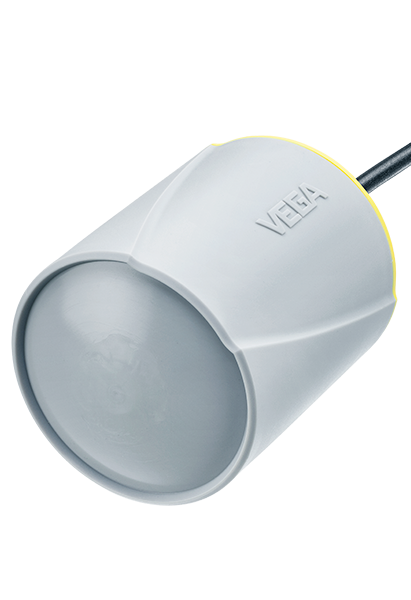

VEGAPULS C 23

Wired radar sensor for continuous level measurement

For standard measuring tasks, IP66/IP68, Type 6P


VEGAPULS C 23 - Wired radar sensor for continuous level measurement
VEGAPULS C 23

应用范围

Axial cable outlet, measuring range up to 30 m, accuracy ±2 mm, 4 ... 20 mA, HART, SDI-12 or Modbus output, Ex-approval optional
VEGAPULS C23非常适用于在保护方式要求高的简单应用中非接触测量物位。典型应用是水处理、 泵站、雨水溢流池、明渠流量测量和监控水位。

您的获益

  • Exact measurement results independent of medium, process and environmental conditions
  • Unaffected by vessel installations due to very good signal focusing
  • 采用非接触式 80 GHz 雷达技术，运行免维护

适用配件

龙门框，支架可调

龙门框，用于顶部安装

Mounting angle with adjustable bracket
其他配件

配置产品

配置产品

可以在我们的下载中心找到该产品的所有文档和软件。

显示所有下载
应用
技术参数
文件
配件
配置产品

其他应用

水库

水库水位测量

水库水位测量

参考应用

海上风电场

风机塔筒水位测量

风机塔筒水位测量

参考应用

水位监测站

河道水位监测站

河道水位监测站

参考应用

石灰料仓

石灰料仓料位及限位测量

石灰料仓料位及限位测量

参考应用
技术参数
量程 - 距离
  • 30 m [Meter - Foot]
过程温度
  • -40 ... 80 °C [°C - °F]
过程压力
  • -1 ... 3 bar [Bar - kPa - psi]
测量精度
  • ± 2 mm
频率
  • 80 GHz
发射角
  • 4°
接液材料
  • PVDF
螺纹连接
  • G1, 1 NPT, R1
防护等级
  • IP66/IP68 (3 bar), Type 6P
输出
  • 4 … 20 mA/HART
  • Modbus
  • SDI-12
环境温度
  • -40 ... 80 °C
许可证
适用范围
  • ATEX / 欧洲
  • IEC / 全球
  • NEPSI / 中国
  • INMETRO / 巴西
  • CCOE / 印度
  • KTL Korea
  • CSA / USA and Canada
  • FM / USA and Candada
  • TIIS / Japan
  • IA
  • UKEX
防爆
  • Intrinsic safety "i"
  • Dust explosion protection through housing "t"
  • Encapsulation "m"
食品/医药
  • FDA
船用许可证
  • ABS
  • BV
  • CCS
  • GL
  • LR
  • NK
  • RINA
溢出保护
  • 水资源法
显示与操作
操作
  • PC, PACTware and DTM
  • 智能手机 / 平板 / PC（蓝牙连接）

图纸发生器
