Reservoir at the pumped storage power plant
Level measurement at the reservoir
|
流体静力学
雷达
|
过程数据
测量任务:
Level measurement
测量点:
Basin, reservoir
测量范围至:
Up to 70 m
介质:
Water
过程温度:
0 … +25 °C
过程压力:
0 … 0 bar
特殊挑战:
Wind, weather, temperature changes, ice formation
应用范围
Pumped storage power plants store a large amount of energy and feed it into the grid very quickly when necessary. One important parameter is the height of the water level in the reservoir. It allows calculations to be made about the amount of energy available and the existing storage volume in pump operation mode. High reliability is required from the measurement technology deployed, because the sensors are often mounted at very remote locations.
建议的产品
流体静力学
雷达
VEGAWELL 52
Hydrostatic level measurement for monitoring the water level in the reservoir
- Robust submersible pressure sensor design ensures high availability
- Wear-free ceramic measuring cell minimizes maintenance costs
- Simple mounting and setup
量程-压力
0 ... 60 bar
过程温度
-20 ... 80 °C
过程压力
-

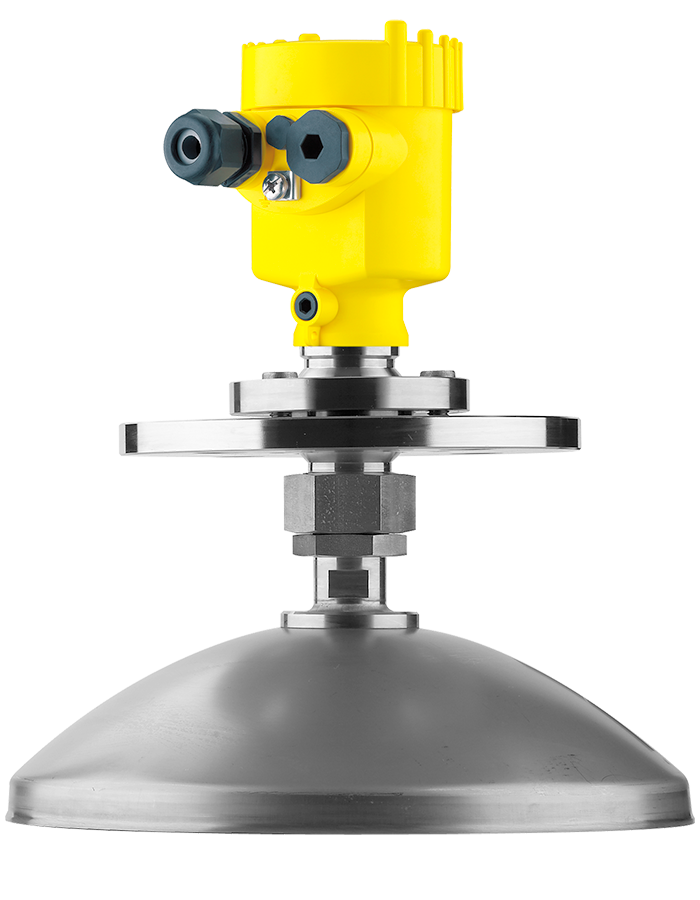

VEGAPULS 68
Non-contact level measurement with radar for determining the water level
- High accuracy over the entire measuring range
- Excellent long-term stability due to wear-free measurement
- Unaffected by temperature, rain or snow
量程 - 距离
75 m
过程温度
-196 ... 450 °C
过程压力
-1 ... 160 bar
